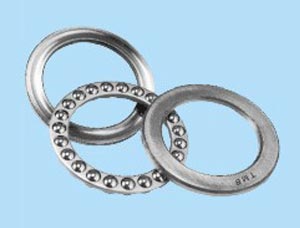

推力球軸承
發(fā)布時間：2021-09-26人氣：323
| 軸承型號 | 基本尺寸 | 極限轉(zhuǎn)數(shù) | 額定負(fù)荷 | 參考重量 |
|---|
| | d | D | B | 脂 | 油 | 動 | 靜 |
|---|
| 51210 | 50 | 78 | 22 | 2400 | 3400 | 49.40 | 106 | 0.37 |
| 51211 | 55 | 90 | 25 | 1900 | 2800 | 61.80 | 134 | 0.59 |
| 51212 | 60 | 95 | 26 | 1900 | 2800 | 62.40 | 140 | 0.65 |
| 51213 | 65 | 100 | 27 | 1800 | 2600 | 63.70 | 150 | 0.78 |
| 51214 | 70 | 105 | 27 | 1800 | 2600 | 65.00 | 160 | 0.79 |
| 51215 | 75 | 110 | 27 | 1700 | 2400 | 67.60 | 170 | 0.83 |
| 51216 | 80 | 115 | 28 | 1700 | 2400 | 76.10 | 190 | 0.91 |
| 51217 | 85 | 125 | 31 | 1600 | 2200 | 97.50 | 250 | 1.2 |
| 51244 | 220 | 300 | 63 | 700 | 950 | 351.00 | 1320 | 13 |
| 51252 | 260 | 360 | 79 | 560 | 750 | 475.00 | 2000 | 25 |
| 51272 | 360 | 500 | 110 | 400 | 530 | 741.00 | 3800 | 70 |
| 51310 | 50 | 95 | 31 | 1800 | 2600 | 88.40 | 173 | 0.94 |
| 51311 | 55 | 105 | 35 | 1600 | 2200 | 104.00 | 208 | 1.3 |
| 51313 | 65 | 115 | 36 | 1500 | 2000 | 106.00 | 220 | 1.5 |
| 51322 | 110 | 190 | 63 | 850 | 1200 | 276.00 | 720 | 7.85 |
| 51326 | 130 | 225 | 75 | 750 | 1000 | 358.00 | 1060 | 13 |
| 51415 | 75 | 160 | 65 | 900 | 1300 | 251.00 | 560 | 6.75 |
| 51417 | 85 | 180 | 72 | 850 | 1200 | 286.00 | 680 | 9.45 |
| 51420 | 100 | 210 | 85 | 700 | 950 | 371.00 | 965 | 15 |
| 52210 | 40 | 78 | 39 | 2400 | 3400 | 49.40 | 106 | 0.71 |
| 52211 | 45 | 90 | 45 | 1900 | 2800 | 61.80 | 134 | 1.1 |
| 52212 | 50 | 95 | 46 | 1900 | 2800 | 62.40 | 140 | 1.2 |
| 52213 | 55 | 100 | 47 | 1800 | 2600 | 63.70 | 150 | 1.35 |
| 52214 | 55 | 105 | 47 | 1800 | 2600 | 65.00 | 160 | 1.52 |
| 52215 | 60 | 110 | 47 | 1700 | 2400 | 67.60 | 170 | 1.55 |
| 52216 | 65 | 115 | 48 | 1700 | 2400 | 76.10 | 190 | 1.7 |
| 52217 | 70 | 125 | 55 | 1600 | 2200 | 97.50 | 250 | 2.4 |
| 52310 | 40 | 95 | 58 | 1800 | 2600 | 88.40 | 173 | 1.75 |
| 52311 | 45 | 105 | 64 | 1600 | 2200 | 104.00 | 208 | 2.4 |
| 52313 | 55 | 115 | 65 | 1500 | 2000 | 106.00 | 220 | 2.75 |
